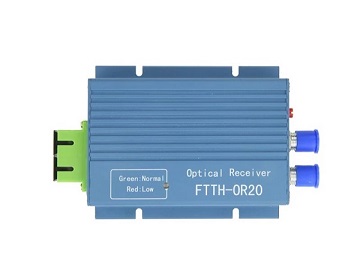

Bộ thu quang FTTH OR20 | mini node OR20 , Cong ty TNHH Thiet Bi Vien thong EICC
|
Bộ thu quang FTTH OR20 | mini node OR20 |
|
| Giá: Call |
Đặt mua:  |
| Thông tin chi tiết |
| 1.Products Summary |
|
|
|
|
|
|
|
|
|
|
| OR20 WDM FTTH is a featured product which is specially designed for FTTH-Fiber to the home net work structure. |
|
| Wirh small housing,compact and reasonable internal circuit structure and excellent performance indicators.It is the good |
|
| choice for residential area and home fiber optic network. |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| 2.Performance characteristics |
|
|
|
|
|
|
|
|
|
| 2.1 Built-in WDM,CATV operating wavelength is 1550nm.OLT pass wavelength 1310/1490nm.It can be connected with EPON, |
| GPON AND ONU |
|
|
|
|
|
|
|
|
|
|
|
| 2.2 Wide dynamic receiving optical power range |
|
|
|
|
|
|
|
|
| 2.3 Operating RF band-width 47-1000Mhz |
|
|
|
|
|
|
|
|
| 2.4 Adopts GaAs amplification device. |
|
|
|
|
|
|
|
|
|
| 2.5 AGC and MGC |
|
|
|
|
|
|
|
|
|
|
| 2.6 5VDC voltage power supply with low power consumption |
|
|
|
|
|
|
|
| 2.7 Aluminum housing with good heat dispersion |
|
|
|
|
|
|
|
|
|
Item
|
Unit
|
Technical Parameters
|
|
PON pass wavelength
|
nm
|
1310/1490
|
|
Responsibility
|
A/W
|
≥0.85≥0.9
|
|
Return loss
|
db
|
>45
|
|
Input Power
|
dbm
|
-18-+2
|
|
AGC control range
|
dbm
|
0-10
|
|
Number of optical input
|
pc
|
1
|
|
Number of optical input(PON)
|
pc
|
1
|
|
Connector type of optical input
|
|
SC/APC
|
|
Connector type of optical output
|
|
SC/APC
|
|
Fiber type
|
|
single mode
|
|
|
|
Link Performance
|
|
C/N
|
db
|
≥51
|
|
C/CTB
|
dbc
|
≥61
|
|
C/CSO
|
dbc
|
≥60
|
|
|
RF Parameters
|
|
Frequency range
|
Mhz
|
47-1000
|
|
Flatness In Band
|
db
|
±0.75
|
|
Number of RF Output
|
pc
|
2
|
|
Output Level
|
dbuv
|
≥76
|
|
|
dbuv
|
≥80
|
|
ATT control range
|
db
|
0-20
|
|
Output Return Loss
|
db
|
14
|
|
Output Impedance
|
|
75
|
|
|
|
General Performance
|
|
Power supply(50Hz)
|
V
|
AC100-240 TO DC 5
|
|
Operating temperature
|
℃
|
-20-+60
|
|
Power Consumption
|
W
|
1
|
|
Dimension
|
mm
|
130x80x25
|
|
