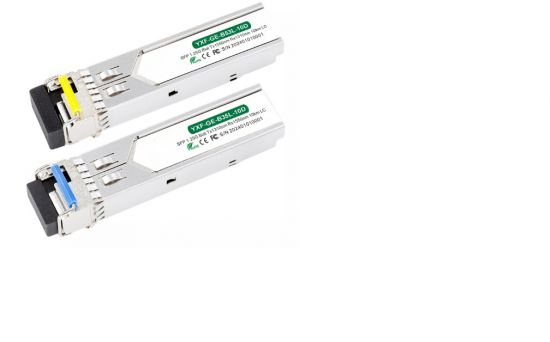

1.25G 1000BASE-BX SFP Transceiver Module (SMF, 1310nm-TX/1550nm-RX, LC/SC)
This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths.
Each SFP transceiver module is individually tested to be used on a series of Brand switches, routers, servers, network interface card (NICs) etc.
* Up to 3km transmission on SMF
* Up to 1.25Gbps
* 1310nm FP laser and 1550nm PIN receiver
* Single LC/SC optical interface compliant
* Hot pluggable
* Very low EMI and excellent ESD protection
* +3.3V power supply
* Power consumption less than 1.0W
* Operating case temperature: 0~+70°C
|
Model
|
YXF-GE-B35LS-3D
|
Distance
|
3km-100km
|
|
Form Factor
|
SFP
|
Max Data Rate
|
1.25G
|
|
Wavelength
|
Tx1310nm/Rx1550nm
|
Transmitter Type
|
DFB
|
|
Media
|
SMF
|
Receiver Type
|
PIN
|
|
Output Power (dBm)
|
-3~-9dBm
|
Sensitivity(dBm)
|
＜-22.0dBm
|
|
Voltage
|
3.3V
|
Temperature Range (℃）
|
0-70
|
|
Connector
|
LC/SC
|
DDM/DOM
|
√
|
|
Protocols
|
IEEE802.3ah 1000Base-BX
|
Warranty
|
3 years
|
|
