10G SFP+ BiDi Tx1330nm/Rx1270nm 10km , Cong ty TNHH Thiet Bi Vien thong EICC
|

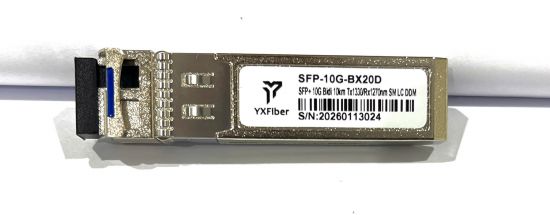

10G SFP+ BiDi Tx1330nm/Rx1270nm 10km |
|
| Giá: Call |
Đặt mua:  |
| Thông tin chi tiết |
Features：
- Tested in Targeted Switches for Superior Performance, Quality, and Reliability.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM(Digital Diagnostic Monitoring) Supported.
- Provide Professional Compatibility and Parameter Test Reports.
- 30-Day Free Return, 3-Year Warranty, Lifetime After-sales Technical Support.
-
| Part Number |
|
Vendor Name |
YXFiber |
| Form Factor |
SFP+ |
Max Data Rate |
10.3125Gbps |
| Wavelength |
1330nm-TX/1270nm-RX |
Max Cable Distance |
10km |
| Connector |
Simplex LC |
Media |
SMF |
| Transmitter Type |
DFB |
Receiver Type |
PIN |
| TX Power |
1~-7dBm |
Receiver Sensitivity |
<-14dBm |
| Power budget |
7dB |
Receiver Overload |
3dBm |
| Typical Power Consumption |
≤1W |
Extinction Ratio |
>3.5dB |
| CommercialTemperature Range |
0 to 70℃(32 to 158°F) |
Protocols |
SFP+MSA Compliant,CPRI,eCPRI |
|
